PSU-MDC-ADJ3-G01

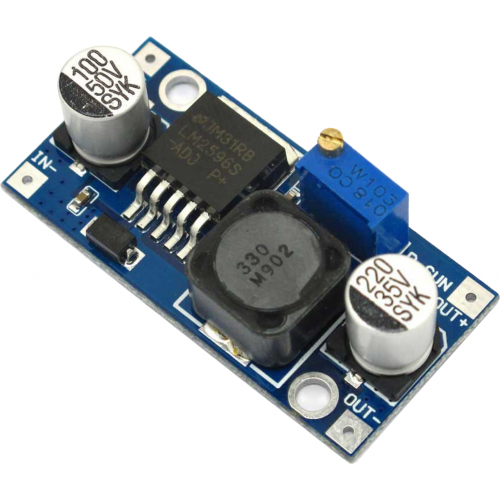

DC to DC Converter Power Module features a wide input voltage range and an adjustable output voltage with a maximum current output of 3A. This module uses the popular LM2596 switching voltage regulator chip combined with low ESR filter capacitors for improved output regulation.  The module has been assembled using machine placement parts and reflow soldering for added reliability.

Specifications

• Input Voltage: 4V to 35V
• Output Voltage: 2.45V to 30V (dependant on input voltage)
• Output Current: 3A (Max)Conversion efficiency 92% (maximum)
• Switching frequency 150KHz
• Output Ripple 30mV (max)
• Load Regulation ± 0.5%
• Voltage Regulation ± 2.5%
• Operating Temperature -40 to +85
• External dimensions 42 * 20 * 14 (L * W * H) (mm) (Approx)
