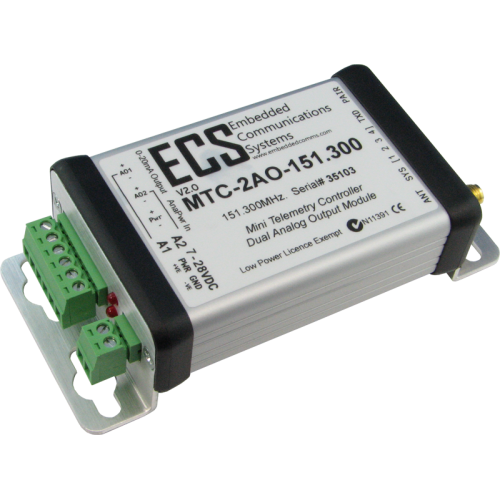

MTC-2AO : MTC Dual Analog Output Receiver
Overview
The MTC Series is a range of low cost Telemetry Controllers providing a licence exempt wireless link capable of simple control and monitoring tasks. Their ease of use and numerous features make them ideal for adding simple wireless control and monitoring to any application requiring wire free operation.
Features
- Two 0-20mA analog outputs
- User configurable operating modes

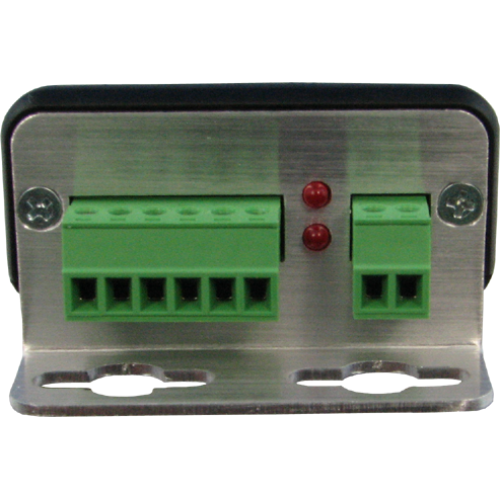

- Pluggable screw terminal connectors
- Visual indication of output state and operation

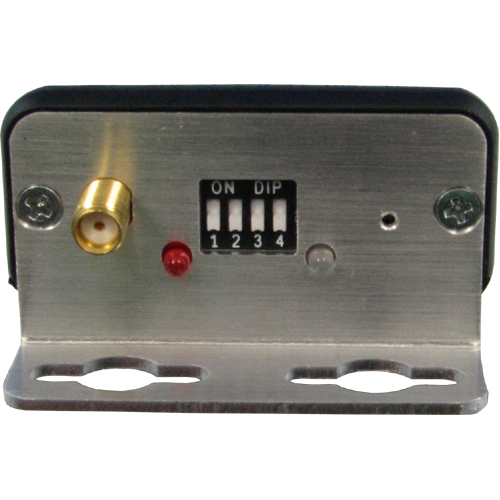

- Simple pairing operation using the pairing button
Product Specifications
- Supply Voltage: 7 to 28VDC. A 12VDC or 24VDC supply is suitable.
- Current Consumption: 20mA continuous. Upto 40mA with high analog output current.
- Operating temperature: -10°C to +60°C
- Dimensions: 85mm x 55mm x 25mm.
- Enclosure: Extruded aluminium with mounting flanges.
What's in the box?
- MTC-2AO Analog Output Module
- 2 way power plug + 6 way IO plug
- An antenna is NOT included. Select a suitable antenna for the chosen operating frequency.
Available Frequencies and Operating Range
| Frequency* (MHz) |
TX Power | Country of use** |
Open Range*** Small Antenna |
Open Range*** External Antenna |
| 151.275MHz 151.300MHz 151.600MHz 152.175MHz |
100mW | AUS | 400m~1km (compressed helical) |
5km+ (1/2 wave dipole) |
| 173.225MHz | 10mW | EU | 150m-500m (helical) | 500m-2km (1/2 wave) |
| 173.250MHz | 100mW | NZ | 500m~1km (helical) | 5km+ (1/2 wave) |
| 433.920MHz | 10mW | AUS/NZ/EU | 100m (helical) | 300m+ (GI Dipole) |
| 433.920MHz | 25mW | AUS/NZ | 300m (helical) | 600m+ (GI Dipole) |
| 434.650MHz | 10mW | AUS/NZ/EU | 200m~500m (helical) | 1km (GI Dipole) |
| 434.650MHz | 25mW | AUS/NZ | 300m-800m (helical) | 2km (GI Dipole) |
| 869.85MHz | 3mW | EU | 50-80m (whip) | 200m (GI whip) |
| 918.525MHz | 3mW | AUS | 50-80m (whip) | 200m (GI whip) |
*Other frequencies available on request
**Guide only. Please check the regulation for your country
***Actual range may vary depending on environment. In-building use will significantly reduce acheivable range.
Repeater Option
The operating range of a link can be extended by use of a single repeater hop that is in line of sight between the transmitting and receiving unit. A repeater can also help in getting around obstructions that can otherwise block the RF signal such as hills, drop offs (down to a river) or wooded areas. An input unit or output unit can be upgraded to become a repeater and that unit can still function as a standard unit.
Analog Output
As standard the MTC-2AO unit is supplied with a 0-20mA on both outputs.
Documentation
Quick Install Guide
MTC Dual Analog - Datasheet
MTC-2AO : MTC Dual Analog Output Receiver
- Brand: ECS
- Product Code: MTC-2AO
- Availability: 2 - 4 Days (To be confirmed)
Available Options
