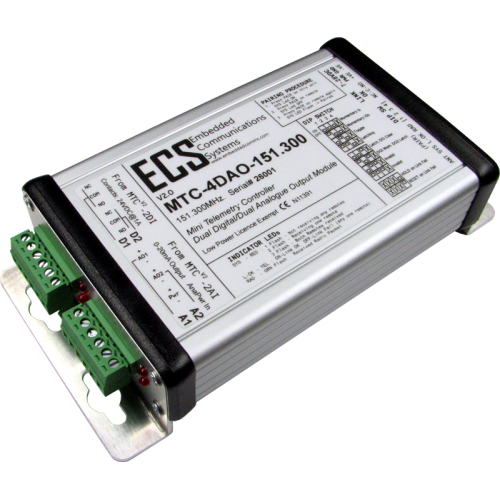

MTC-4DAO : MTC Dual Digital+Analog Output Recevier
MTC Overview
The MTC Series is a range of low cost Telemetry Controllers providing a licence exempt wireless link capable of simple control and monitoring tasks. Their ease of use and numerous features make them ideal for adding simple wireless control and monitoring to any application requiring wire free operation.
Product Description
The ECS MTC-4DAO telemetry receiver is capable of being used to monitor two remotely positioned wireless sensors. Pairing the MTC-4DAO with a dual analogue transmitter in one location and a dual digital transmitter in another location, allows for monitoring and control of remotely located systems. An example of this control and monitoring is with long centre pivot irrigators where pump/start stop signals at one end are sent to the VSD and water pressure at the end of the irrigator are also sent to the VSD.
Product Features
- Two digital outputs with NO + NC relay conacts
- Two 0-20mA analog outputs
- User configurable operating modes
- Pluggable screw terminal connectors
- Visual indication of output state and operation
- Simple pairing operation using the pairing button
- Licence free operation (country specific)
Product Specifications
- Supply Voltage: 7 to 28VDC. A 12VDC or 24VDC supply is suitable.
- Current Consumption: 20mA continuous.
- Additional digital output current: +30mA per active relay
- Additional analog output current: 20mA per analog output
- Link Status: Link OK relay output. NO + NC contacts
- Operating temperature: -10°C to +60°C
- Relay contacts: 3A @ 30VDC/125VAC
- Dimensions: 85mm x 55mm x 25mm.
- Enclosure: Extruded aluminium with mounting flanges.
What's in the box?
- MTC-4DAO Digital+Analog Output Module
- 2 way power plug + 2 x 6 way IO plug + 3 way plug
- An antenna is NOT included. Select a suitable antenna for the chosen operating frequency.
Available Frequencies and Operating Range
| Frequency* (MHz) |
TX Power | Country of use** |
Open Range*** Small Antenna |
Open Range*** External Antenna |
| 151.275MHz 151.300MHz 151.600MHz 152.175MHz |
100mW | AUS | 400m~1km (compressed helical) |
5km+ (1/2 wave dipole) |
| 173.225MHz | 10mW | EU | 150m-500m (helical) | 500m-2km (1/2 wave) |
| 173.250MHz | 100mW | NZ | 500m~1km (helical) | 5km+ (1/2 wave) |
| 433.920MHz | 10mW | AUS/NZ/EU | 100m (helical) | 300m+ (GI Dipole) |
| 433.920MHz | 25mW | AUS/NZ | 300m (helical) | 600m+ (GI Dipole) |
| 434.650MHz | 10mW | AUS/NZ/EU | 200m~500m (helical) | 1km (GI Dipole) |
| 434.650MHz | 25mW | AUS/NZ | 300m-800m (helical) | 2km (GI Dipole) |
| 869.85MHz | 3mW | EU | 50-80m (whip) | 200m (GI whip) |
| 918.525MHz | 3mW | AUS | 50-80m (whip) | 200m (GI whip) |
*Other frequencies available on request
**Guide only. Please check the regulation for your country
***Actual range may vary depending on environment. In-building use will significantly reduce acheivable range.
Analog Output
As standard the MTC-4DAO unit is supplied with two 0-20mA outputs.
Digital Output
As standard the MTC-4DAO unit is supplied with low power relays. They are suitable to low current, low voltage switching. To switch high power loads we recommend using external relays or contactors.
Documentation
Quick Install Guide
MTC Dual Digital - Datasheet
MTC-4DAO : MTC Dual Digital+Analog Output Receiver
- Brand: ECS
- Product Code: MTC-4DAO
- Availability: 2 - 4 Days (To be confirmed)
